Inspur AS13000G5-M60 Top Loading 60 x 3.5" Disks

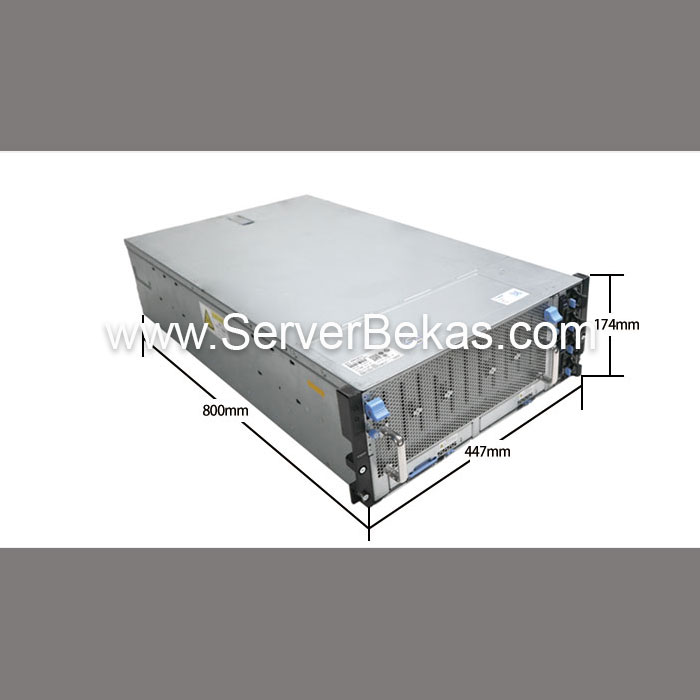

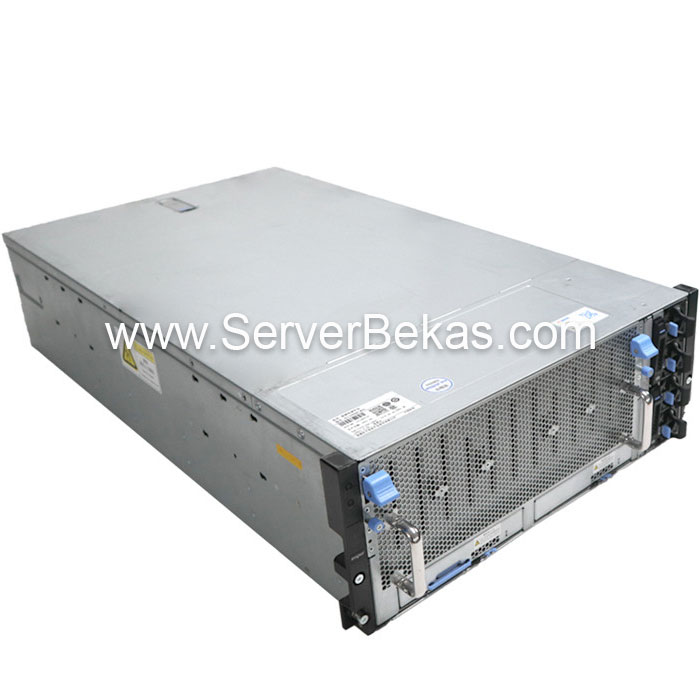

Server Inspur AS13000G5-M60 ini adalah server dengan ukuran 4U yang cocok untuk storage server dengan kapasitas besar.

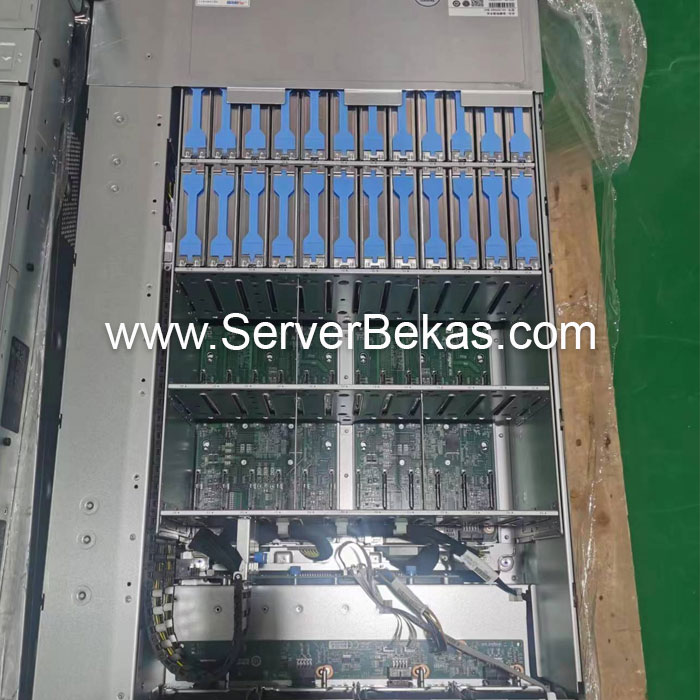

Server ini mempunyai 60 buah slot disk 3.5" dan 2 buah slot 2.5". Anda bisa memasang disk baik SATA maupun SAS, HDD maupun SSD.
Server ini juga mempunyai 2 buah slot untuk M.2 SATA, dan 1 buah PCIE slot.

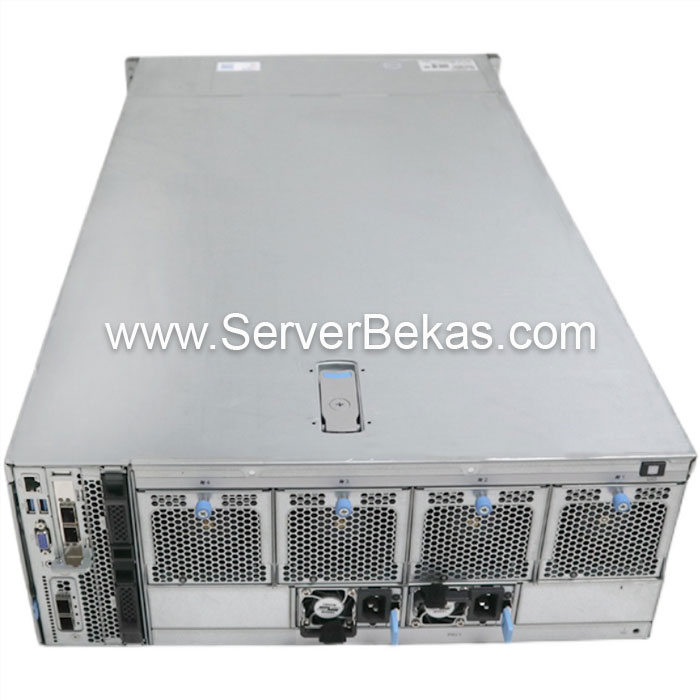

Server ini dilengkapi juga dengan 2 port USB, 2 port SFP+ 10Gbps, serta 1 port BMC/IPMI remote management.
Paket yang dijual mempunyai konfigurasi default berupa:
- 2 x 2.5" disk bracket
- 60 x 3.5" disk bracket
- LSI 3008 12Gb RAID Card
- 2 x 1300W Power Supply
- BMC/IPMI remote management
- L Shape Railkit
Untuk processor, memory, dan disk bisa dipasang sesuai kebutuhan Anda. Silahkan lihat pilihannya di bawah.
Processor
2 x Silver-4108 Core: 16, Thread: 32, Speed: 1.8-3GHz, Cache: 11MB, TDP: 85 Watt
2 x Silver-4109T Core: 16, Thread: 32, Speed: 2-3GHz, Cache: 11MB, TDP: 70 Watt
2 x Silver-4110 Core: 16, Thread: 32, Speed: 2.1-3GHz, Cache: 11MB, TDP: 85 Watt
2 x Silver-4112 Core: 8, Thread: 16, Speed: 2.6-3GHz, Cache: 8.25MB, TDP: 85 Watt
2 x Silver-4114 Core: 20, Thread: 40, Speed: 2.2-3GHz, Cache: 13.75MB, TDP: 85 Watt
2 x Silver-4114T Core: 20, Thread: 40, Speed: 2.2-3GHz, Cache: 13.75MB, TDP: 85 Watt
2 x Silver-4116 Core: 24, Thread: 48, Speed: 2.1-3GHz, Cache: 16.5MB, TDP: 85 Watt
2 x Silver-4116T Core: 24, Thread: 48, Speed: 2.1-3GHz, Cache: 16.5MB, TDP: 85 Watt
2 x Gold-5115 Core: 20, Thread: 40, Speed: 2.4-3.2GHz, Cache: 13.75MB, TDP: 85 Watt
2 x Gold-5118 Core: 24, Thread: 48, Speed: 2.3-3.2GHz, Cache: 16.5MB, TDP: 105 Watt
2 x Gold-5119T Core: 28, Thread: 56, Speed: 1.9-3.2GHz, Cache: 19.25MB, TDP: 85 Watt
2 x Gold-5120 Core: 28, Thread: 56, Speed: 2.2-3.2GHz, Cache: 19.25MB, TDP: 105 Watt
2 x Gold-5120T Core: 28, Thread: 56, Speed: 2.2-3.2GHz, Cache: 19.25MB, TDP: 105 Watt
2 x Gold-5122 Core: 8, Thread: 16, Speed: 3.6-3.7GHz, Cache: 16.25MB, TDP: 105 Watt
2 x Gold-6138 Core: 40, Thread: 80, Speed: 2-3.7GHz, Cache: 27.5MB, TDP: 125 Watt
2 x Gold-6148 Core: 40, Thread: 80, Speed: 2.4-3.7GHz, Cache: 27.5MB, TDP: 150 Watt
2 x Platinum-8153 Core: 32, Thread: 64, Speed: 2-2.8GHz, Cache: 22MB, TDP: 125 Watt
2 x Platinum-8160 Core: 48, Thread: 96, Speed: 2.1-3.7GHz, Cache: 33MB, TDP: 150 Watt
2 x Platinum-8249C Core: 52, Thread: 104, Speed: 2.1-3.6GHz, Cache: 36MB, TDP: 150 Watt
2 x Platinum-8176 Core: 56, Thread: 112, Speed: 2.1-3.8GHz, Cache: 38.5MB, TDP: 165 Watt
RAM
32GB DDR4-2666 ECC REG
64GB DDR4-2666 ECC REG
96GB DDR4-2666 ECC REG
128GB DDR4-2666 ECC REG
192GB DDR4-2666 ECC REG
256GB DDR4-2666 ECC REG
384GB DDR4-2666 ECC REG
512GB DDR4-2666 ECC REG
768GB DDR4-2666 ECC REG
1024GB DDR4-2666 ECC REG
1536GB DDR4-2666 ECC REG
Disk 3.5"
- New HDD SATA 3TB 7.2K RPM Barracuda 3.5"
- HDD SAS 6TB 7.2K RPM ST6000NM0034 3.5"
- HDD SAS 8TB 7.2K RPM HUH728080AL5200 3.5"
- New HDD SATA 8TB 7.2K RPM Exos 3.5"
- HDD SAS 12TB 7.2K RPM HUH721212AL5200 3.5"
- New HDD SATA 14TB 7.2K RPM Exos 3.5"
- HDD SAS 300GB 15K RPM with converter to 3.5"
- HDD SAS 600GB 10K RPM with converter to 3.5"
- HDD SAS 900GB 10K RPM with converter to 3.5"
- New SSD 512GB Samsung PM871 with converter to 3.5"
- New SSD 512GB Samsung 840 Pro with converter to 3.5"
- New SSD 1TB Samsung PM871A with converter to 3.5"
- New SSD 1.92TB Samsung PM883 with converter to 3.5"
- New SSD 3.84TB Samsung PM883 with converter to 3.5"
Disk 2.5"
- HDD SAS 300GB 15K RPM 2.5"
- HDD SAS 600GB 10K RPM 2.5"
- HDD SAS 900GB 10K RPM 2.5"
- HDD SAS 1.2TB 10K RPM 2.5"
- New SSD 512GB Samsung PM871 2.5"
- New SSD 512GB Samsung 840 Pro 2.5"
- New SSD 1TB Samsung PM871 2.5"
- New SSD 1.92TB Samsung PM883 2.5"
- New SSD 3.84TB Samsung PM883 2.5"
M.2 NVMe
- New Samsung PM981A M.2 NVMe 1TB
- New Samsung PM981 M.2 NVMe 2TB
